Mark4 13inch V3 Pro Carbon Fiber for FPV Racing Drone Quadcopter Freestyle Frame Kit

The MARK4 V3 13-inch 570mm Carbon Fiber Frame Kit is a high-performance and durable frame designed for large-format FPV freestyle and long-range drone builds. Crafted from premium 3K carbon fiber, the frame offers exceptional rigidity and strength while maintaining a lightweight structure, ensuring optimal flight stability and agility even under high-thrust conditions.

Features:

1. Wheelbase: Approximately 570 mm diagonal motor spacing — ideal for 13-inch propellers and large-format FPV builds.
2. Frame Material: High-quality 3K carbon fiber construction providing excellent strength-to-weight ratio and rigidity for freestyle or long-range flights.
3. Arm Thickness: 8 mm thick carbon fiber arms ensure superior durability and stability during aggressive maneuvers or heavy payload use.
4. Top & Bottom Plates: Features a ~2.0 mm top plate and ~3.0 mm bottom plate for added frame strength and impact resistance.
5. Flight Controller / Stack Mounting: Supports both 20×20 mm and 30.5×30.5 mm hole patterns.
6. VTX (Video Transmitter) Mounting: Compatible with 20×20 mm or 30.5×30.5 mm mounting holes.
7. Motor Mounts: Supports 30 mm M4 motor mounting holes for a wide range of motor options.

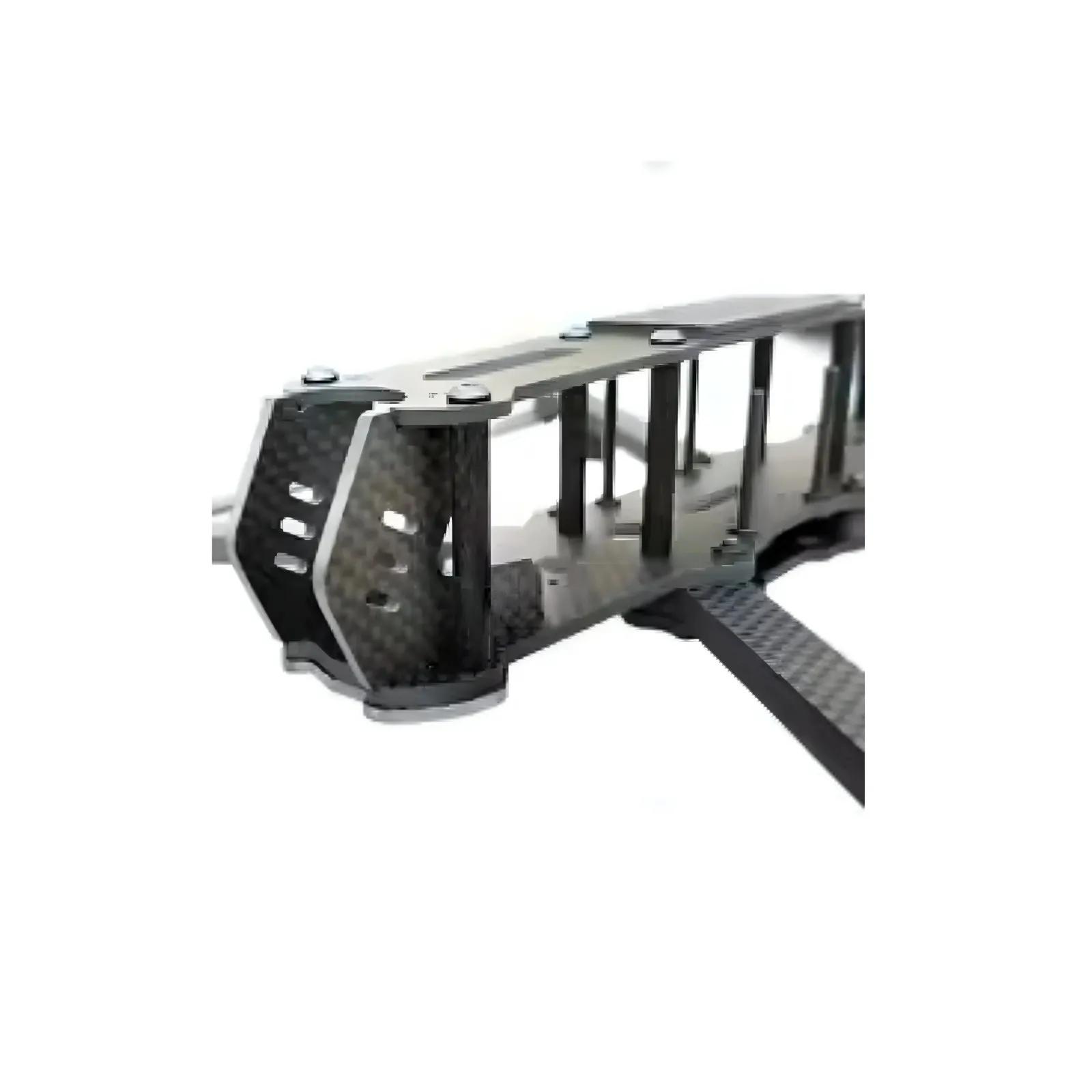

8. Camera Mount / Side Plates: Includes sturdy side plates designed to hold and protect micro-sized FPV cameras.
9. Versatility: Suitable for both analog and digital FPV setups, making it adaptable for freestyle, cinematic, or long-range configurations.
10. Complete Kit: Comes pre-packaged with plates, arms, standoffs, screws, and nuts — ready for assembly (verify exact contents with the seller).

Package Includes:

1 X Mark4 13inch V3 carbon Fiber for FPV Racing Drone Quadcopter Freestyle Frame Kit
