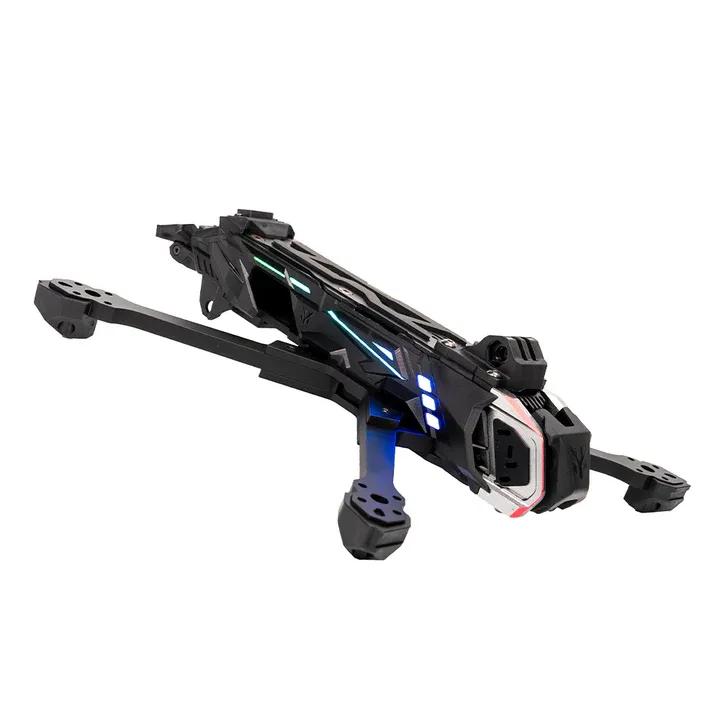

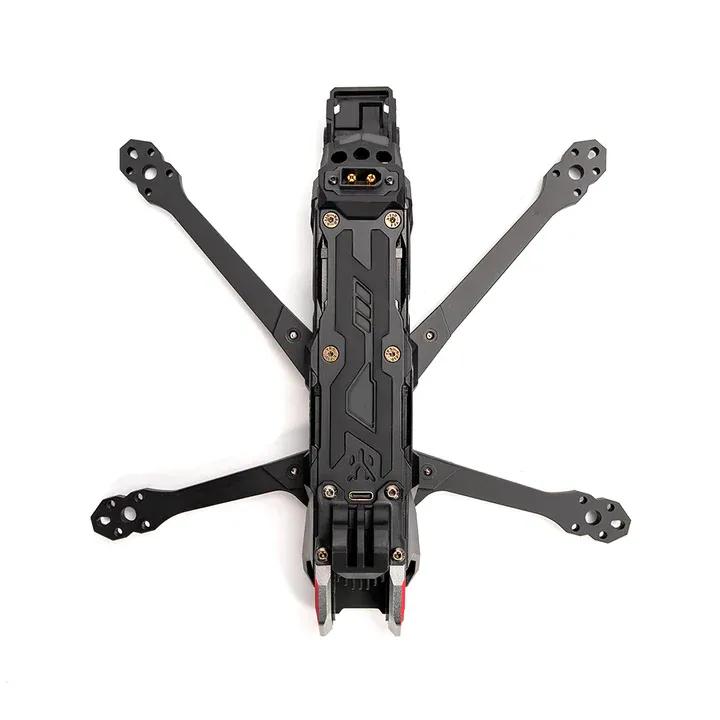

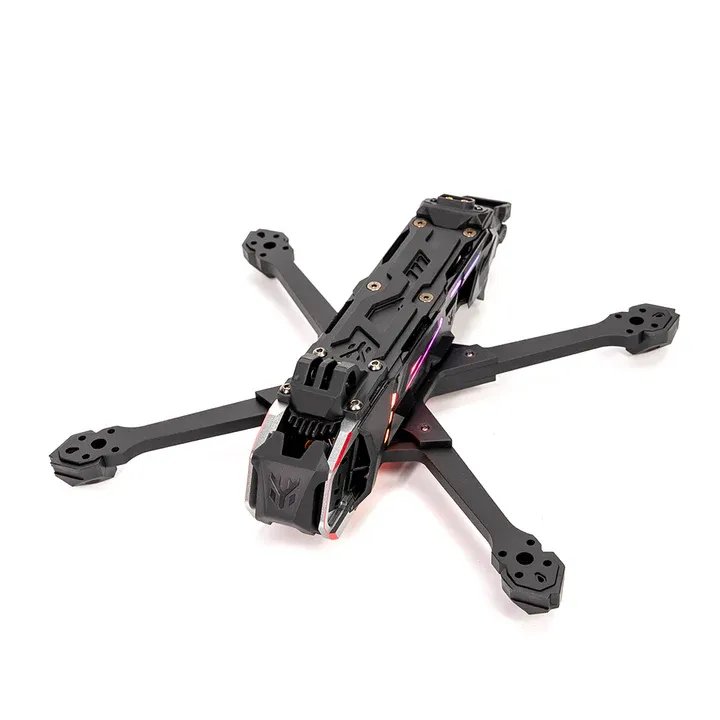

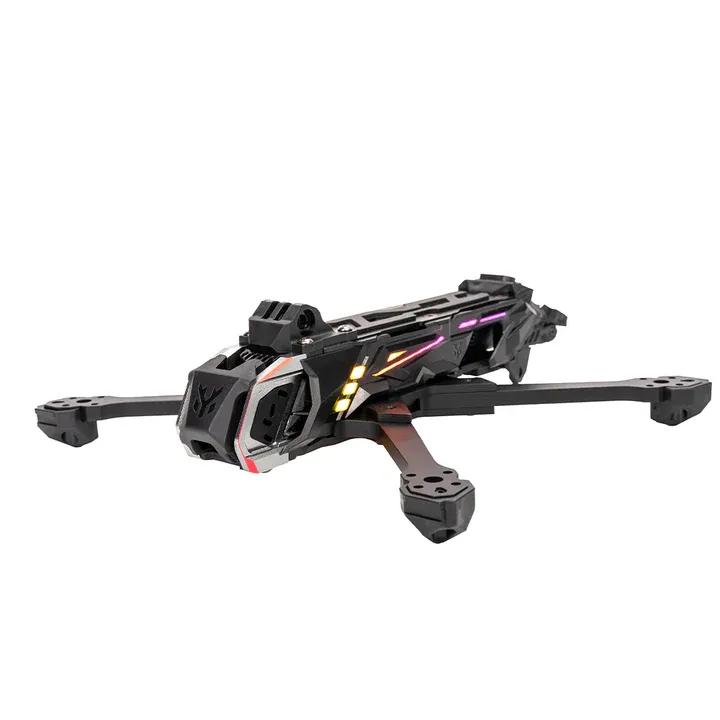

HGLRC Nblade Max 5 inch DC Freestyle FPV Frame

The HGLRC Nblade MAX is a cutting-edge 5-inch freestyle FPV drone frame designed to deliver a perfect blend of aesthetics, durability, and high performance. Featuring a streamlined high-strength slender body, the frame achieves an ideal balance between robustness and sleek design, making it perfect for pilots who want both style and substance. Constructed with wear-resistant injection-molded ABS/PP parts instead of traditional 3D printing, the Nblade MAX significantly enhances shock absorption, buffering capabilities, and overall durability. Its fully covered side plates provide superior protection to internal electronics against flying sand and debris, ensuring longer-lasting reliability.

This frame includes an independent quick-release receiver compartment, simplifying frequency debugging, maintenance, and replacement without the hassle of crowded internal spaces. For night flyers and those who appreciate customization, the frame features a colorful RGB LED lighting system with app-controlled wireless effects to make your drone the highlight of any flight.

The Nblade MAX is engineered for versatility. It supports popular VTX systems including DJI O4 PRO AIR Unit, DJI O3 AIR Unit, and analog VTX. The robust build uses carbon fiber and aluminum alloy components, including a 7mm thick arm structure and aluminum alloy head parts for enhanced strength.

Features:

1. Streamlined high-strength frame with a slender, aerodynamic design
2. Wear-resistant injection-molded ABS/PP parts for enhanced shock absorption and durability
3. Fully covered side plates protect internal electronics from dust, sand, and debris
4. Independent quick-release receiver compartment for easy installation and maintenance
5. Colorful RGB LED lighting system with wireless app control for customizable effects
6. Multiple mounting options for flight controllers, cameras, VTX, and antennas
7. Supports DJI O4 PRO AIR Unit, DJI O3 AIR Unit, and analog VTX systems
8. Robust carbon fiber and aluminum alloy construction for strength and lightweight performance
9. Stack installation height of 21mm for flexible component fitting
10. Compatible with 5.1-inch maximum propeller size
11. Thick 7mm arms and aluminum alloy head parts for crash resistance and durability

Package Includes:

1 x Nblade MAX Frame

1 x Bottom Plate

1 x Middle Plate

1 x Top Plate

2 x Front Arms

2 x Rear Arms

1 x Head Aluminum Part L

1 x Head Aluminum Part R

2 x GoPro Reinforced Carbon Sheet

1 x VTX Heat Dissipation Aluminum Part

1 x Camera Shock Pad L

1 x Camera Shock Pad R

1 x GoPro Mount

2 x Foot Pad A

2 x Foot Pad B

1 x Antenna Tail Seat L

1 x Antenna Tail Seat R

1 x GPS Mount

1 x Receiver Compartment

1 x Battery Anti-Slip Sticker

1 x Buzzer Mount

1 x Side Plate L

1 x Side Plate R

1 x Side Sub-Plate L

1 x Side Sub-Plate R

1 x Bottom Light Bar Cover

1 x Bottom Front Light Cover

1 x Head Cover

1 x Semi-Circular Head M5×20

1 x Self-Locking M5 Nut

1 x BLE Adapter Small Board

1 x Bottom Light Bar

1 x 0.8mm Piercing Terminal Wire 6P

1 x 0.8mm Piercing Terminal Wire 9P (3P×3)

1 x XT60EW-M Male Head

4 x PVC Cable Bundle 50mm

1 x HGLRC Battery Strap

Screw List:

1. 2 x M3×5 Half Round Head
2. 4 x M3×18 Half Round Head
3. 4 x M3×12 Half Round Head
4. 4 x M3×30 Half Round Head
5. 6 x M3×8 Half Round Head
6. 4 x M3×10 Half Round Head
7. 4 x M3×6 Countersunk Head
8. 2 x M2×4 Countersunk Head
9. 2 x M2×4 Round Head
10. 2 x M2×9 Cup Head
11. 2 x M2×8 Round Head
12. 1 x M2×22 Hexagonal Aluminum Column
13. 6 x M3×23 Hexagonal Aluminum Column

1 x Nblade MAX Frame

1 x HGLRC Large Sticker

1 x Universal QR Code Instruction Manual

2 x HGLRC Battery Strap

1 x Nblade MAX Frame Packaging Box
